 Head lateral view
|
|
| jorgemotalmeida |
Posted on 27-09-2007 22:28
|
 Member Location: Viseu - PORTUGAL Posts: 9296 Joined: 05.06.06 |

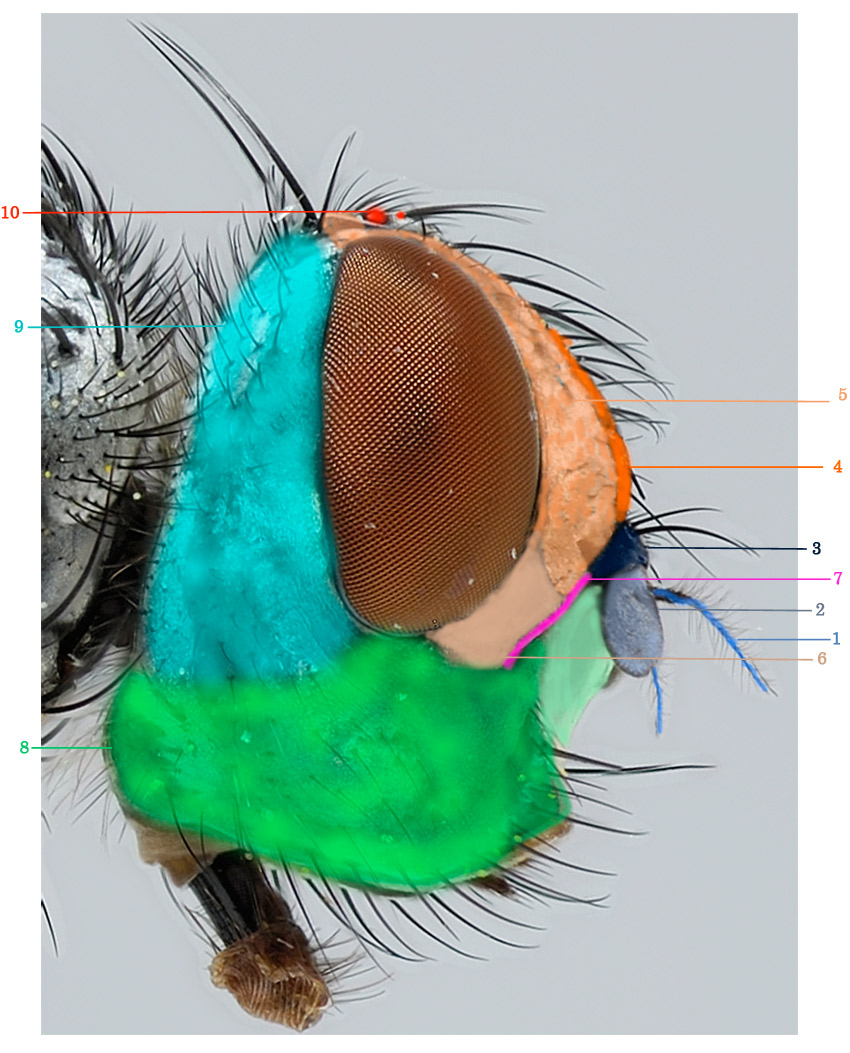

Head of Tachinidae - Dexiinae. Photo copyright ? A.W. Thomas. 1 - arista 2 - 3rd segmental antenna - first flagellomere 3 - 2nd segmental antenna - pedicel 4 - frons or frontalia 5 - frontorbital plate 6 - parafacialia 7 - ptilinal suture 8 - gena 9 - occiput 10 - ocellus (plural: OCELLI) jorgemotalmeida attached the following image:  [189.64Kb] Edited by jorgemotalmeida on 27-09-2007 23:25 |
 |
|
| jorgemotalmeida |
Posted on 27-09-2007 23:02
|
|
Member Location: Viseu - PORTUGAL Posts: 9296 Joined: 05.06.06 |
Original photo. Photo copyright ? A.W. Thomas. jorgemotalmeida attached the following image:  [192.55Kb] |
|
|
|
| jorgemotalmeida |
Posted on 27-09-2007 23:10
|
|
Member Location: Viseu - PORTUGAL Posts: 9296 Joined: 05.06.06 |
Tony T, thanks for sharing your great photos. Thank you. To everybody: Feel free to fix any errors in legend, or in my painting. Thank you. Edited by jorgemotalmeida on 27-09-2007 23:19 |
|
|
|
| cosmln |
Posted on 27-09-2007 23:13
|
 Member Location: Romania Posts: 956 Joined: 18.03.07 |
jorgemotalmeida wrote: Feel free to fix any errors in legend, or in my painting. Thank you. i can't see where is number 7 also other numbers are not there and you have in the ilustration number 13 for ocellus but in your text is 10... i'm blind or is not there cosmln Edited by cosmln on 27-09-2007 23:16 |
|
|
|
| jorgemotalmeida |
Posted on 27-09-2007 23:16
|
|
Member Location: Viseu - PORTUGAL Posts: 9296 Joined: 05.06.06 |
cosmin see it again.  |
|
|
|
| jorgemotalmeida |
Posted on 27-09-2007 23:24
|
|
Member Location: Viseu - PORTUGAL Posts: 9296 Joined: 05.06.06 |
Notes: the green light zone (which has no number) is the face. |
|
|
|
| jorgemotalmeida |
Posted on 04-10-2007 21:24
|
|
Member Location: Viseu - PORTUGAL Posts: 9296 Joined: 05.06.06 |
Please, see if occiput and gena paintings are correct. I'm not sure about the limits of occiput. If the limits of gena/occiput are like those wasps, it must be fixed. Thank you. |
|
|
|
| jmperillal |
Posted on 14-10-2016 22:45
|
|
Member Location: Posts: 2 Joined: 31.10.14 |
Hi, I am working to define genal groove, genal dilation and postgena areas. Manual of Nearctic Diptera has a illustration, but those characters are not clear when looking specimens at the microscope. |
|
|
|
