 Mycetophilidae - wing
|
|
| Tony T |
Posted on 27-04-2008 22:03
|
 Member Location: New Brunswick, Canada Posts: 664 Joined: 08.02.07 |

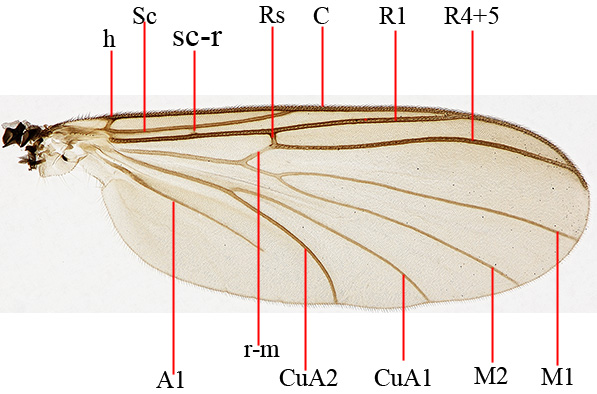

Of this male SEE HERE EDIT: re-labelled Tony T attached the following image:  [82.29Kb] Edited by Tony T on 29-04-2008 18:26 |
|
|
|
| Tony T |
Posted on 28-04-2008 00:05
|
|
Member Location: New Brunswick, Canada Posts: 664 Joined: 08.02.07 |
Thanks to the sharp eyes of Stephane Lebrun: the furthest right CuA2 vein (near M2) should be labelled CuA1. |
|
|
|
| Paul Beuk |
Posted on 28-04-2008 08:21
|
 Super Administrator Location: Netherlands Posts: 19403 Joined: 11.05.04 |
Another change needed: R2+3 should be Rs.
Paul - - - - Paul Beuk on https://diptera.info |
 |
|
| Tony T |
Posted on 28-04-2008 22:46
|
|
Member Location: New Brunswick, Canada Posts: 664 Joined: 08.02.07 |
I will relabel this image. If my R2+3 is really Rs where is R2 and R3? Is my labelling R4+5 correct? |
|
|
|
| Paul Beuk |
Posted on 29-04-2008 08:01
|
|
Super Administrator Location: Netherlands Posts: 19403 Joined: 11.05.04 |
No R2+3 is present. That would have been a second cross vein distal of Rs which would then create a closed cell.
Paul - - - - Paul Beuk on https://diptera.info |
|
|
|
| Tony T |
Posted on 29-04-2008 18:27
|
|
Member Location: New Brunswick, Canada Posts: 664 Joined: 08.02.07 |
Thanks Paul. Re-labelled image submitted |
|
|
|
